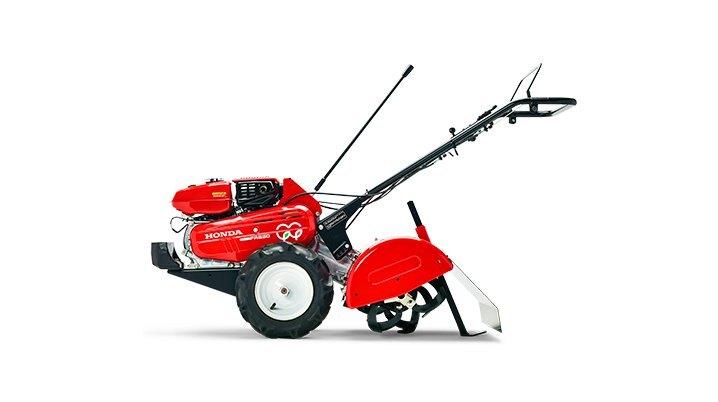

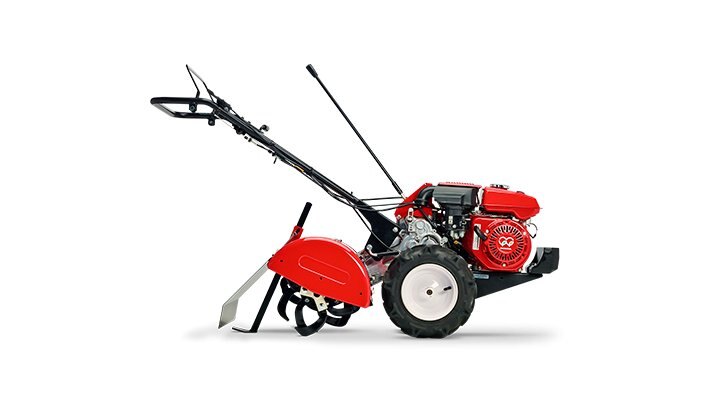

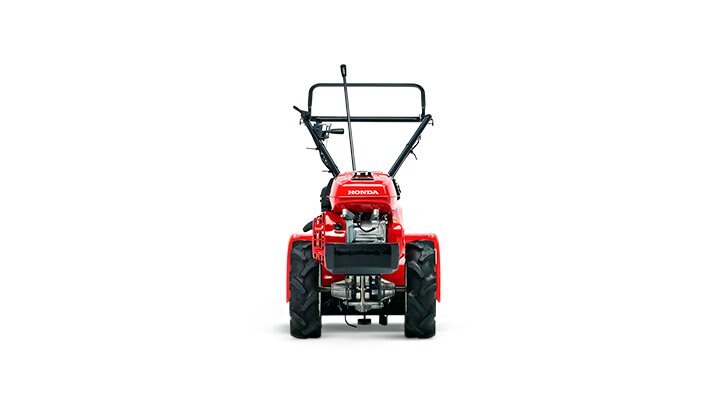

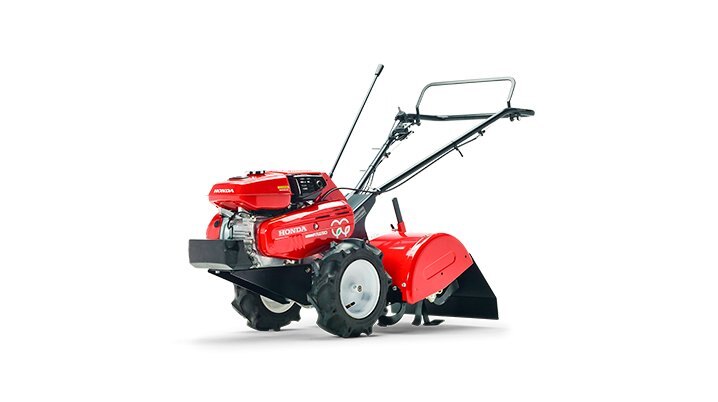

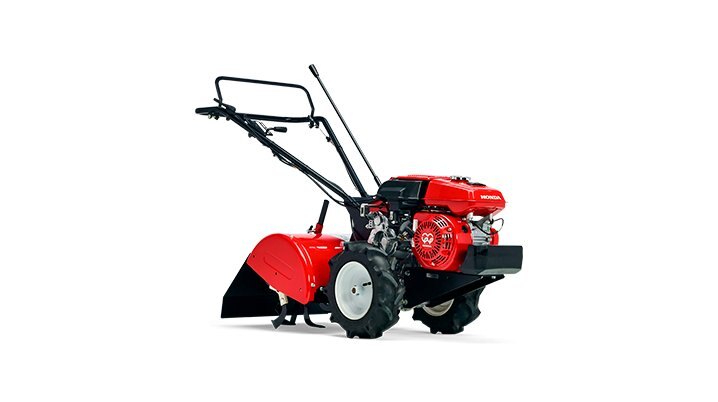

Honda Rear-Tine 20" ARS FR650K1C1
Overview
Overview
Highlights
Transmission: Chain Drive
Starter: Recoil
Tiller Type: Rear-Tine ARS™ (Active Rotary System™)
Weight: 87 kg (191.8 lbs) without wheels

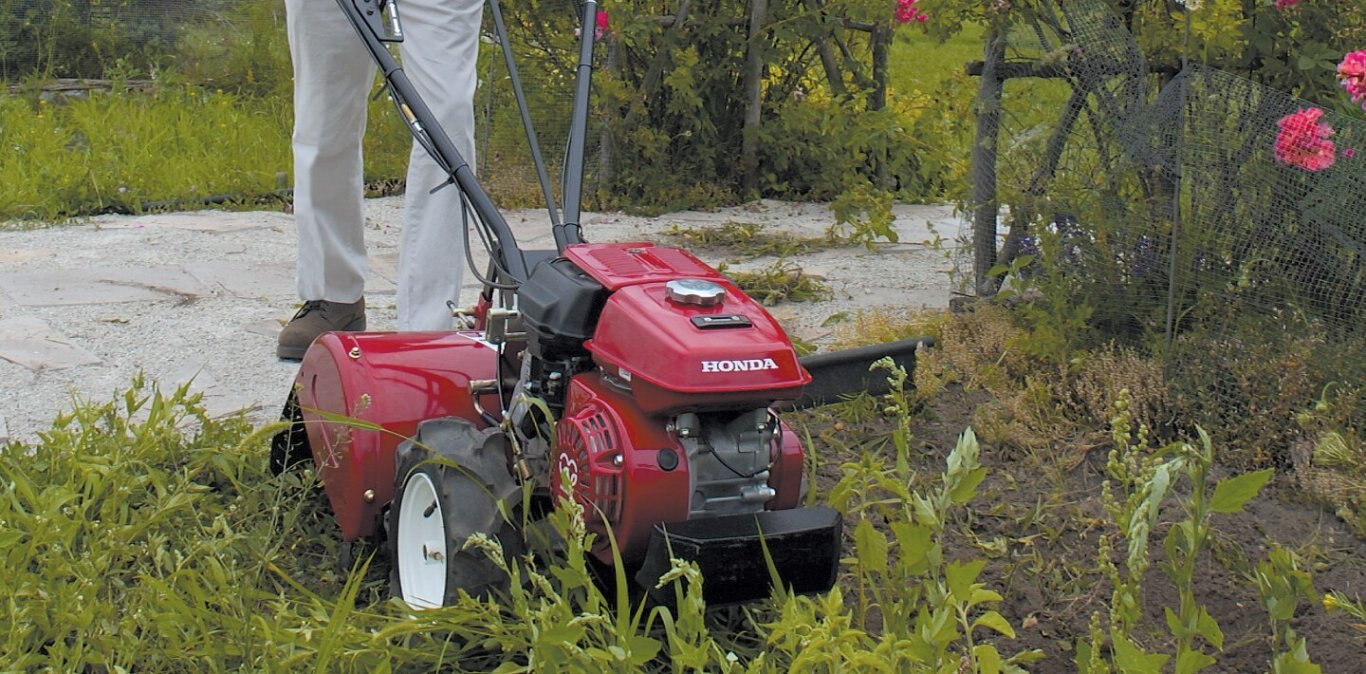

Rear-Tine 20" ARS™ Ground Breaking Tiller Optimal for tilling hard soil and breaking new ground, this rear-tine 20" tiller features an exclusive Active Rotary System™ (ARS™) with two sets of counter-rotating tines to reduce pulling and kickback.
Specifications
Category Name
Power Equipment
features
2_forward_and_1_reverse_speed
51 cm_(20_in)_tilling_width
Ergonomically_arranged_controls
Honda_GX160T2_OHV_4-stroke_engine
Perfect_for_tilling_hard_or_never-broken_ground
Exclusive_ARS™_Active_Rotary_System™_with_two_sets_of_counter-rotating_tines_efficiently_till_the_soil_with_reduced_pulling_and_kickback
engine and transmission
Air_Cleaner
Dual-element type
Engine_Type
Honda GX160T2, 4-stroke, OHV, single cylinder
Tiller_Type
Rear-tine ARSTM (Active Rotary System)
Displacement
163 cc (10 CID)
Starting_System
Recoil starter
Recommended_Fuel
Regular unleaded gasoline (87 Octane)
Transmission_Type
Chain drive
Fuel_Tank_Capacity
2.8 L (0.62 Imp. gal.)
Honda_Engine_Model
GX160T2
Transmission_Speed(s)
2-forward / 1-reverse
product dimensions
Dry_Weight
87 kg (191.8 lbs.) without wheels
Overall_Width
57 cm (22.4 in.)
Tilling_Width
51 cm (20.1 in.)
Tine_Diameter
32.6 cm (12.8 in.)
Overall_Height
110 cm (43.3 in.)
Overall_Length
145 cm (57.1 in.)
Tine_Speed_@_max._Torque_Speed
238 RPM
